The Hyper III

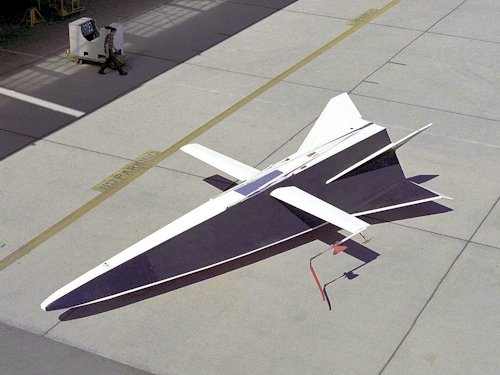

The Hyper III was a full-scale lifting-body remotely piloted research vehicle (RPRV) built at what was then the NASA Flight Research Center located at Edwards Air Force Base in Southern California. The Hyper III was designed to help in the M2 lifting body program, it had a flat bottom and sides, and a simple straight wing with no control surfaces that was designed to simulate a pop-out wing that had been proposed for a re-entry vehicle. The Hyper III had twin fins and rudders canted at 40° from the vertical, and hinged elevons on the horizontal surface. The landing gear was a fixed tricycle type, using spring steel legs from a Cessna aircraft. It was fitted with an emergency parachute system and controlled by 5-channel radio link; instrument data was downlinked using a 12-channel radio. Elevons are aircraft control surfaces that combine the functions of the elevator (used for pitch control) and the aileron (used for roll control), hence the name.

Hi-Res Pic (149K)
